Flexible, large-capacity 10/40/100 GE Optical Switching and Networking (OSN) platform for building high-performance backbone and Metropolitan Area Networks. Total capacity up to 25.6 Tbit/s per fully configured system, scalable to over 100 Tbit/s with clustering. 400 GE per-slot capacity supports 100 GE transmission rates with ample capacity for long-haul transmission needs.
Integrated optical and electrical layer Automatically Switched Optical Network (ASON) support, Optical Transport Network (OTN), packet, and Generalized MPLS features are combined with energy-efficient electronics and advanced, dynamic cooling features to reduce OpEx

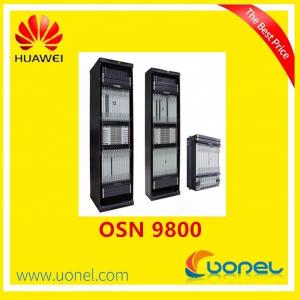

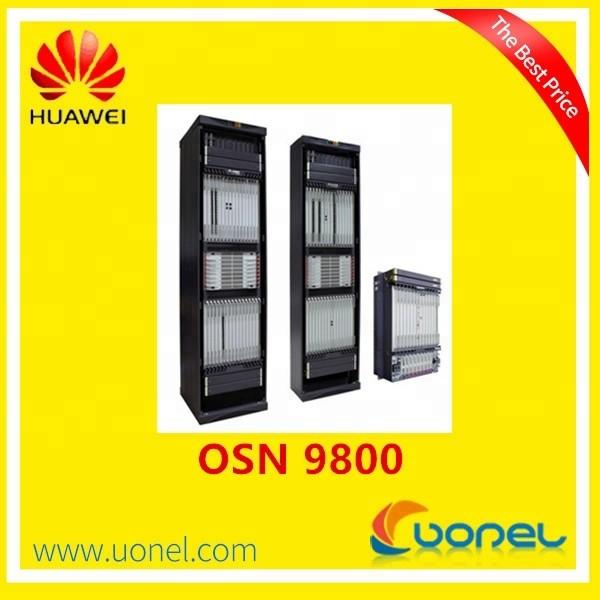

OptiX OSN 9800 enables you to create reliable, large backbone and metropolitan networks with 40 to 100 GE transmission speeds over long distances.
Ultra-large capacity OTN platform with high bandwidth, resilient 25.6 Tbit/s cross-connect capacity — scalable for cross-connect capacity up to 100 Tbit/s
Industry-leading 400 GE per slot capacity addresses 100G and future transmission requirements
Unified switching matrix based on exclusive Tbit/s switching chip implements universal OTN/VC/packet access, switching, and transmission
T-SDN design enables virtual transport services for migration of traditional WDM networks to IP-based cloud computing
Specifications
OptiX OSN 9800 U16
OptiX OSN 9800 U32
OptiX OSN 9800 U64
Dimensions (H x W x D)
847 mm x 442
mm x 295 mm
1,900 mm x 498
mm x 295 mm
2,200 mm x 600 mm x
600 mm (with cabinet)
Number of Service Slots
14
32
64
Switching Capability
5.6 Tbit/s universal
switching
12.8 Tbit/s universal
switching
25.6 Tbit/s universal
switching
Channel Spacing
50/100 GHz fixed grid for 40/80 wavelengths
37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum)
100 GE, 200 GE, 400 GE, 1 TE, 2 TE
Wavelength Range
DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1)
Power Supply
–48 V DC/–60 V DC
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Delivery Options
Estimated Delivery Time
DHL
3-5 business days
Fedex
3-5 business days
By Sea
10-20 business days
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order. Uonel is responsible for transporting goods to door after you have made the payment.
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
