OptiX OSN 9800 TN97D48 48-port demultiplexer board-- OSN9800 UPS

Name: OptiX OSN 9800 TN97D48 48port demultiplexer board OSN9800 UPS
Brand: Huawei
Price: 1 USD

China OptiX OSN 9800 TN97D48 48-port demultiplexer board-- OSN9800 UPS factory

Model Number : TN97D48

Place of Origin : China

TN97D48 : 48-port demultiplexer board

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Brand Name : Huawei

Certification : CE FCC RoHS

MOQ : Negotiable

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Functions and Features

The main functions and features supported by the D48 are demultiplexing, online optical performance monitoring, alarms and performance events monitoring.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the D48

Function and Feature	Description
Basic function	Demultiplexes main path signal to a maximum of 48 channels of service. D4801: demultiplexes one multi-wavelength signal into 48 extened C_EVEN wavelength signals. D4802: demultiplexes one multi-wavelength signal into 48 extened C_ODD wavelength signals.
Online optical performance monitoring	Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic.
Alarms and performance events monitoring	Detects the optical power and reports the alarms and performance events for the board.

D48 Specifications

Specifications include optical specifications, dimensions, weight and power consumption.

Optical Specifications

Table 1 lists the optical specifications of the D48.

Table 1 Optical specifications of the D48

Item	Unit	Value
Adjacent channel spacing	GHz	100
Insertion loss	dB	<6.5
Reflectance	dB	<-40
Operating wavelength range	THz	D4801: 191.3 to 196.0 D4802: 191.35 to 196.05
Adjacent channel isolation	dB	>25
Non-adjacent channel isolation	dB	>30
Polarization dependent loss	dB	≤0.5
Temperature characteristics	nm/°C	<0.002
Maximum channel insertion loss difference	dB	≤3
Channel bandwidth	nm	1dB bandwidth: ≥0.4 3dB bandwidth: ≥0.6 20dB bandwidth: ≤1.2

Mechanical Specifications

Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 76.2 mm (3.0 in.) x 220 mm (8.7 in.)
Weight: 1.66 kg ( 3.65 lb.)

Power Consumption

Board	Typical Power Consumption (W)	Maximum Power Consumption^a (W)
TN97D48	10.0	13.0
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.

Delivery

Delivery Options	Estimated Delivery Time
DHL	3-5 business days
Fedex	3-5 business days
By Sea	10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices

100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.

Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed product: 1 Year

The Support Contacts:

If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.

Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.

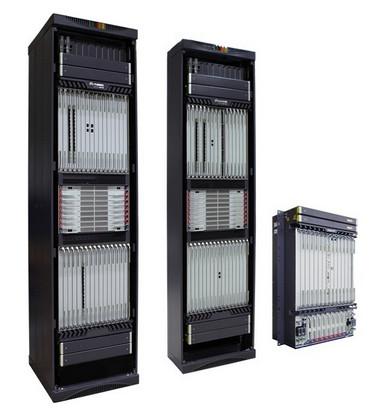

OptiX OSN 9800 TN97D48 48-port demultiplexer board-- OSN9800 UPS Images
