Dimensions (W x D x H) :41 mm x 393 mm x 130 mm (1.6 in. x 15.5 in. x 5.1 in.)
Weight :< 2.5 kg
Rated output voltage :-53.5 V DC
Packaging Details :Export carton package
Port :Shenzhen
Supply Ability :200 Piece/Pieces per Week
Price :Negotiable
MOQ :Negotiable
Delivery Time :7-15 days
Payment Terms :L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Product Overviews

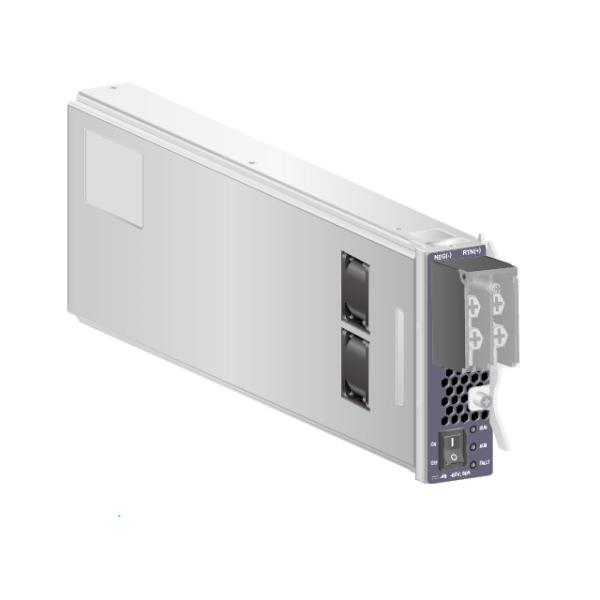

Huawei W2PSD2201 2200W DC power module
Table 1 Switch chassis and software versions matching a 2200 W DC power module (S9300&S9300E)
Model
Power Module Name
S9300 Chassis
S9300E Chassis
W2PSD2201
2200 W DC power module
S9303, S9306 and S9312 chassis: supported in V200R003C00 and later versions
S9310 chassis: supported in V200R010C00 and later versions
Supported in V200R001C00 and later versions
Table 2 Switch chassis and software versions matching a 2200 W DC power module (S9300X)
Model
Power Module Name
S9310X Chassis
W2PSD2201
2200 W DC power module
Supported in V200R010C00 and later versions
Functions
A 2200 W DC power module provides a maximum power of 2200 W for the chassis. Table 3 describes the functions of a 2200 W DC power module.
Table 3 Functions of a 2200 W DC power module
Function
Description
Input protection
Input undervoltage protection
In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.
Input overcurrent protection
In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced.
Output protection
Output overvoltage protection
In this protection state:
If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again.
If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.
Output overcurrent protection
In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.
Output short-circuit protection
In this protection state, the power module supplies power intermittently, and the output current is limited to within a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.
Overtemperature protection
When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping
The power module is hot swappable.
