S2700-26TP-EI-AC

Product Categories
Uonel Co.Limtied
Contact Now

S2700-26TP-EI-AC

  • 1
  • 2
  • 3

Products Status : Stock

Ports : 24

Transmission Rate : 10/100Mbps

Function : LACP, POE, QoS, SNMP, VLAN Support

Communication Mode : Full-Duplex & Half-Duplex

Certification : CE FCC RoHS

Switch Capacity : /

Model Number : S2700

Place of Origin : China

Packaging Details : Export carton package

Port : Shenzhen

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Brand Name : Huawei

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

S2700-26TP-EI-AC S2700 Series Switch

Overview (S2700-26TP-EI-AC)

S2700-26TP-EI-AC is a switch which supports 24 Ethernet 10/100 ports and 2 dual-purpose 10/100/1,000 or SFP ports. It’s one of the S2700 Series Enterprise Switches which deliver 100 Mbit/s access switches for enterprise campus networks.

Quick Specs

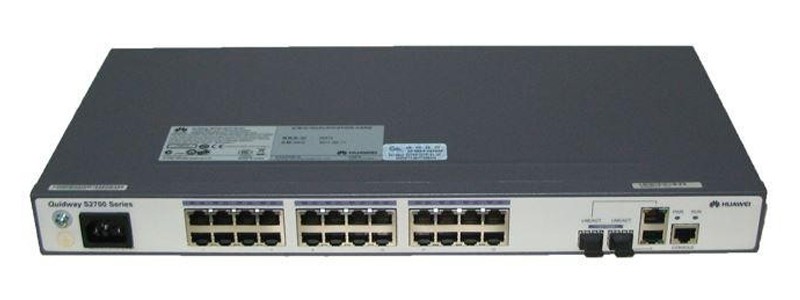

Figure 1 shows the appearance of S2700-26TP-EI-AC switch.

S2700-26TP-EI-AC

Table 1 shows the Quick Specs.

Product Code

S2700-26TP-EI-AC

Downlink Ports

24 Ethernet 10/100 ports

Uplink Ports

2 dual-purpose 10/100/1,000 or SFP ports

MAC Address

8K MAC address entries

Forwarding Performance

6.6 Mpps

Switching Capacity

32 Gbit/s

Power

AC 120/230 V ( 50/60 Hz )

Heat Dissipation

Fan-free natural heat dissipation

Installation mode

Rack mounting, desk mounting, wall mounting

300-mm deep cabinet

Supported

Dimensions (W x D x H)

44.2 cm × 22 cm × 4.4 cm

Package Weight

4.5 Kg

Product Details

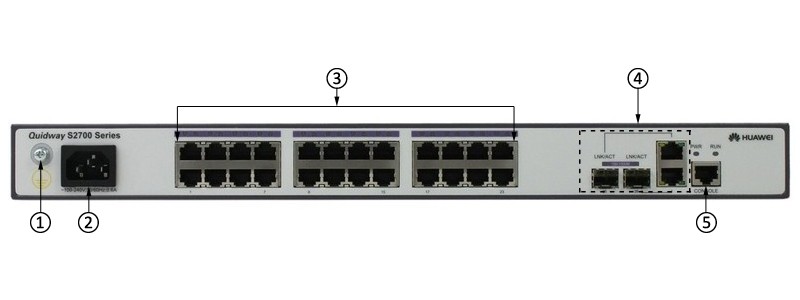

Figure 2 shows the front panel of S2700-26TP-EI-AC switch.

S2700-26TP-EI-AC

Note:

1

Ground Screw

4

Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)

2

AC socket

5

One console port

3

24 10/100BASE-TX Ethernet Electrical Ports

·Ground Screw is used with a ground cable.

·Two Combo Ports include 10/100/1000BASE-T and 100/1000BASE-X ports. FE/GE/GE-CWDM optical transceivers are applicable to the combo ports.

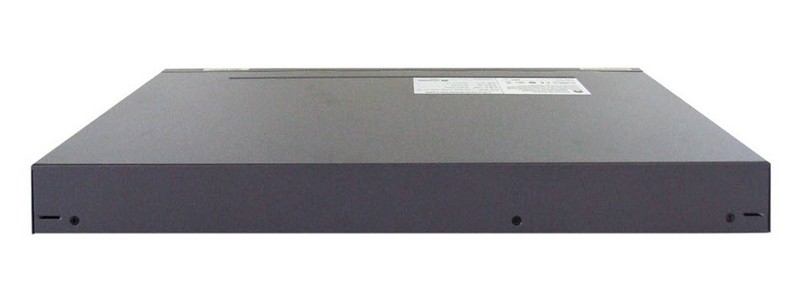

Figure 3 shows the back looking of S2700-26TP-EI-AC switch.

S2700-26TP-EI-AC

The Transceiver

S2700-26TP-EI-AC switch supports FE optical transceivers, GE optical transceivers and GE-CWDM optical transceivers.

Table 2-4 shows the recommended optical transceivers.

Table 2 FE Optical Transceivers

Models

Description

S-SFP-FE-LH80-SM1550

Optical Transceiver, eSFP, FE, Single-mode Module (1550nm, 80km, LC)

SFP-FE-LX-SM1310-BIDI

Optical Transceiver, eSFP, FE, BIDI Single-mode Module (TX1310/RX1550, 15km, LC)

SFP-FE-LX-SM1550-BIDI

Optical Transceiver, eSFP, FE, BIDI Single-mode Module (TX1550/RX1310, 15km, LC)

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)

Table 3 GE Optical Transceivers

Models

Description

LE2MGSC40ED0

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)

SFP-GE-ZBXD1

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC)

SFP-GE-ZBXU1

Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx) ,80km, LC)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

eSFP-GE-ZX100-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)

Table 4 GE-CWDM Optical Transceivers

Models

Description

CWDM-SFPGE-1531

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1531nm, 80km, LC)

CWDM-SFPGE-1551

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1551nm, 80km, LC)

CWDM-SFPGE-1571

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1571nm, 80km, LC)

CWDM-SFPGE-1591

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1591nm, 80km, LC)

Compare to Similar Item

Table 5 shows the comparison of S2700-26TP series switches.

Models

S2700-26TP-SI-AC

S2700-26TP-EI-AC

S2700-26TP-EI-DC

S2700-26TP-PWR-EI

Downlink Ports

24 x Ethernet 10/100 ports

24 x Ethernet 10/100 ports

24 x Ethernet 10/100 ports

24 x Ethernet 10/100 ports

Uplink Ports

2 x dual-purpose 10/100/1,000

or SFP

2 x dual-purpose 10/100/1,000

or SFP

2 x dual-purpose 10/100/1,000

or SFP

2 x dual-purpose 10/100/1,000

or SFP

Power Supply

AC

AC

DC

AC

PoE Support

N/A

N/A

N/A

PoE+
Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
S2700-26TP-EI-ACDHL 3-5 business days
S2700-26TP-EI-AC Fedex 3-5 business days
S2700-26TP-EI-AC By Sea 10-20 business days

S2700-26TP-EI-ACNotice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

S2700-26TP-EI-ACDeliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

S2700-26TP-EI-ACDeliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

S2700-26TP-EI-AC 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


S2700-26TP-EI-AC 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


S2700-26TP-EI-AC Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


S2700-26TP-EI-AC 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


S2700-26TP-EI-AC Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed product: 1 Year

The Support Contacts:

If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.

Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.












China S2700-26TP-EI-AC factory
