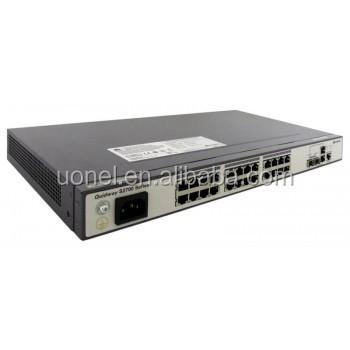

S2700-9TP-PWR-EI S2700 Series Switch
Overview (S2700-9TP-SI-AC)
S2700-9TP-SI-AC
s2700-9tp-si
S2700-SI Series Switch
8 FastEthernet 10/100 Mbps Ports
1 dual-purpose Gigabit Ethernet 10/100/1000 or SFP uplink
iStack technology, QoS, Security
Forwarding performance: 2.7 Mpps
S2700-9TP-SI-AC is the entry-level access layer, layer 2 enterprise switch. S2700-9TP-SI-AC provides basic function of layer 2 switching with 8 FastEthernet 10/100 interfaces and 1 uplink which can be either 1 dual-purpose Gigabit Ethernet Rj-45 or SFP uplink. S2700-series switch utilizes cutting-edge switching technologies and versatile looking platform software to implement easy installation, configuration, monitoring and troubleshooting, greatly reduces initial installation and configuration costs, improves upgrade efficiency and lowers engineering costs.
S2700 series intelligence switch can be used for various enterprise network areas to help enterprises to build high performance, reliable network environment. S2700 uses iStack technology to virtualize multiple switches into a single one to ease user management and configuration and expand the system switching capacity. By utilizing iStack features enhances reliability and scalability, moreover, this feature greatly reduces system operation and maintenance costs.
Specification (S2700-9TP-SI-AC)
S2700-9TP-SI-AC Specification and Datasheet
Port
Eight 10/100Base-TX ports and one gigabit(GE) combo port
Forwarding performance
2.68 Mpps
MAC address table
8 K MAC address entries Manual creation and deletion of MAC address entries Aging time of MAC address entries Disabling MAC address learning on an interface or aggregation group Limit on the number of MAC addresses learned on an interface Blackhole MAC address entries
VLAN features
4 K VLANs, complying with IEEE 802.1Q Port-based VLAN assignment
QoS
Port-based rate limiting and flow-based rate limiting Four or eight queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms
IPv6 features
IPv6 host Static IPv6 routes
Multicast
IGMP v1/v2/v3 snooping Multicast load balancing among member ports of a trunk Port-based rate limiting and traf?c statistics for multicast packets
Port mirroring
1:1 and N:1 port mirroring
Security
Port isolation Suppression of multicast, broadcast, and unknown unicast packets CPU defense
AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Dimensions: width x depth x height
250 mm x 180 mm x 43.6 mm
Weight
1.4kg
Power consumption
< 12.8 W
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Delivery Options
Estimated Delivery Time
DHL
3-5 business days
Fedex
3-5 business days
By Sea
10-20 business days
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order. Uonel is responsible for transporting goods to door after you have made the payment.
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Company Profile
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
