Home > Huawei Network Switches >

CloudEngine CE8800 Series for Huawei Data Center Switches CE8860-4C-EI

Product Categories

Uonel Co.Limtied

Contact Now

CloudEngine CE8800 Series for Huawei Data Center Switches CE8860-4C-EI

Name: CloudEngine CE8800 Series for Huawei Data Center Switches CE88604CEI
Brand: Huawei
Price: 1 USD

Products Status : Stock

Ports : ≥ 48

Transmission Rate : 10/100/1000Mbps

Function : LACP, POE, QoS, SNMP, VLAN Support

Communication Mode : Full-Duplex & Half-Duplex

Certification : CE FCC RoHS

Switch Capacity : 128Gbps

Model Number : CE8860-4C-EI

Place of Origin : China

Product Name : CE8860-4C-EI

Device Type : CE8860-4C-EI

Type : CE8860-4C-EI

Item : CE8860-4C-EI

Packaging Details : Export carton package

Port : Shenzhen

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Brand Name : Huawei

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

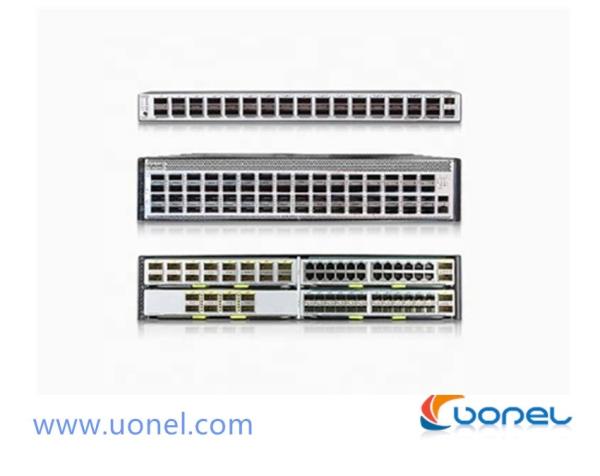

CloudEngine CE8800 Series Data Center Switches CE8860-4C-EI

Huawei CloudEngine 8800 series (CE8800) switches are 100G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 100 GE/40 GE/25 GE/10 GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE8800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric for cloud-computing data centers.

CE8800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks

CE8860-4C-EI

2U high, supporting four flexible cards of half the standard width

CE88-D24S2CQ	24 x 10 GE (SFP+) or 25 GE (SFP28) and 2 x 100 GE (QSFP28) cards
CE88-D24T2CQ	24 x 10 GE (BASE-T) and 2 x 100 GE (QSFP28) cards
CE88-D8CQ	8 x 100 GE (QSFP28) cards
CE88-D16Q	16 x 40 GE (QSFP+) cards

Item	CE8860-4C-EI
Ports	4 slots, different cards can be flexibly used in combinations to achieve a maximum of: 32 x 100 GE QSFP28 or 64 x 40 GE QSFP+ or 128 x 25 GE SFP28 or 128 x 10 GE SFP+ ports
Switching Capacity	6.4 Tbit/s
Forwarding Performance	3,200 Mpps
Dimensions (W x D x H)	442 mm x 600 mm x 88.1 mm
Weight (fully loaded)	21.2 kg (46.7 lb)
Maximum Power Consumption	750W

Ordering information

Mainframe
CE8860-4C-EI-F	CE8860-4C-EI switch (4 subcard slots with airflow from the fan module panel to the front panel (with ports and without power module))
CE8860-4C-EI-B	CE8860-4C-EI switch (4 slots with airflow from the front panel (with ports) to the fan module panel, without power module)
Subcard
CE88-D8CQ	8-port, 100G Ethernet optical (QSFP28)
CE88-D16Q	16-port, 40G Ethernet optical (QSFP+)
CE88-D24T2CQ	24-port, 10G Ethernet electrical (RJ45) and 2-port 100G Ethernet optical (QSFP28)
CE88-D24S2CQ	24-port, 10G Ethernet optical (SFP+) and 2-port 100G Ethernet optical (QSFP28)
Fan box
FAN-180A-F	Fan box (F, FAN panel side intake)
FAN-180A-B	Fan box (B, FAN panel side exhaust)
Power module
PAC-1K2WA-F	1,200W AC and 240V DC power module with airflow from the power module panel to the front panel (with ports)
PAC-1K2WA-B	1,200W AC and 240V DC power module, with airflow from the front panel (with ports) to the power module panel
PHD-1K2WA-F	1,200W high-voltage DC power module with airflow from the power module panel to the front panel (with ports)
PHD-1K2WA-B	1,200W high-voltage DC power module with airflow from the front panel (with ports) to the power module panel
Software
CE88-LIC-NPV	CloudEngine 8800 FCoE NPV Function
CE88-LIC-FCF16	CloudEngine 8800 FCF 16 Ports
CE88-LIC-FCFAL	CloudEngine 8800 FCF All Ports
CE88-LIC-VXLAN	CloudEngine 8800 VXLAN Function
