03022UGS CE-SFUB-S CE12800S Switch Fabric Unit B
Physical specifications of the CX600-X8
Item
Specification
Dimensions (H x W x D)
620 mm (14U) x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)
620 mm (14U) x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)
Installation position
N68E cabinet or a standard 19-inch cabinet or a 23-inch rack that complies with the North American standard
Weight
Empty chassis
25.8 kg (56.89 lb)
Full configuration (maximal)
136 kg (299.88 lb)
Integrated chassis
43.2kg (95.26 1b)
Typical power consumption
3220W
Heat dissipation
10447.0 BTU/hour
DC input voltage
Rated voltage
-48 V DC / -60 V DC
Maximum voltage range
-38.4 V DC to -72 V DC
AC input voltage
Rated voltage
200 V AC to 240 V AC(220V)
Maximum voltage range
180 V AC to 264 V AC
System reliability
MTBF (year)
21.91
MTTR (hour)
0.5
Ambient temperature
Long-term
0°C to 45°C (32°F to 113°F)
Short-term
-5°C to 55°C (23°F to 131°F)
Remarks
Limit of the temperature change rate: 30°C (86°F)/hour
Storage temperature
-40°C to 70°C (-40°F to 158°F)
Relative humidity
Long-term
5% RH to 85% RH, no coagulation
Short-term
5% RH to 95% RH, no coagulation
Storage humidity
5% RH to 95RH, no coagulation
Long-term altitude
≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude.
Storage altitude
Lower than 5000 m (16404 ft)
System configuration list of the CX600-X8
Item
Typical Configuration
Remarks
Processing unit
Main frequency:1.5 GHz(SRUA5)
Main frequency:2 GHz(SRUB5)
Main frequency:1.5 GHz(SRUA7)
-
SDRAM
4 GB(SRUA5)
16 GB(SRUB5)
4 GB(SRUA7)
Two 2GB memory modules(SRUA5)
Two 8GB memory modules(SRUB5)
Two 2GB memory modules(SRUA7)
CF card
4 GB(SRUA5)
8 GB(SRUB5)
4 GB(SRUA7)
Two 2 GB CF cards(SRUA5)
One CF card(SRUB5)
Two 2 GB CF cards(SRUA7)
Switching capacity
7.08 Tbit/s (LPUF/I-240)
-
Number of LPU slots
8
-
Number of SRU slots
2
-
Number of SFU slots
1
-
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Delivery Options
Estimated Delivery Time
DHL
3-5 business days
Fedex
3-5 business days
By Sea
10-20 business days
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order. Uonel is responsible for transporting goods to door after you have made the payment.
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Company Profile
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.

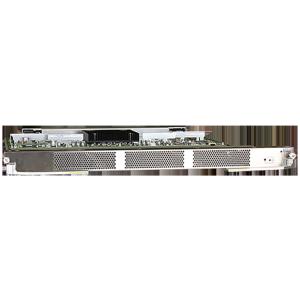

03022UGS CE-SFUB-S CE12800S Switch Fabric Unit B Images
